Standard Charger (40amps)



1. $450 deposit required. Refunded after 1,500 kWh of charging.

2. $30 shipping fee

3. 40amps (50amps breaker), 18 feet charging cable

4. Roulez Vert & BC Hydro rebate eligible

5. Earn 11¢ per kWh charged

6. Lifetime warranty

Use Discount Code provided by DashSharing Channel Partners for discounted deposit amount at checkout.

Product Specifications

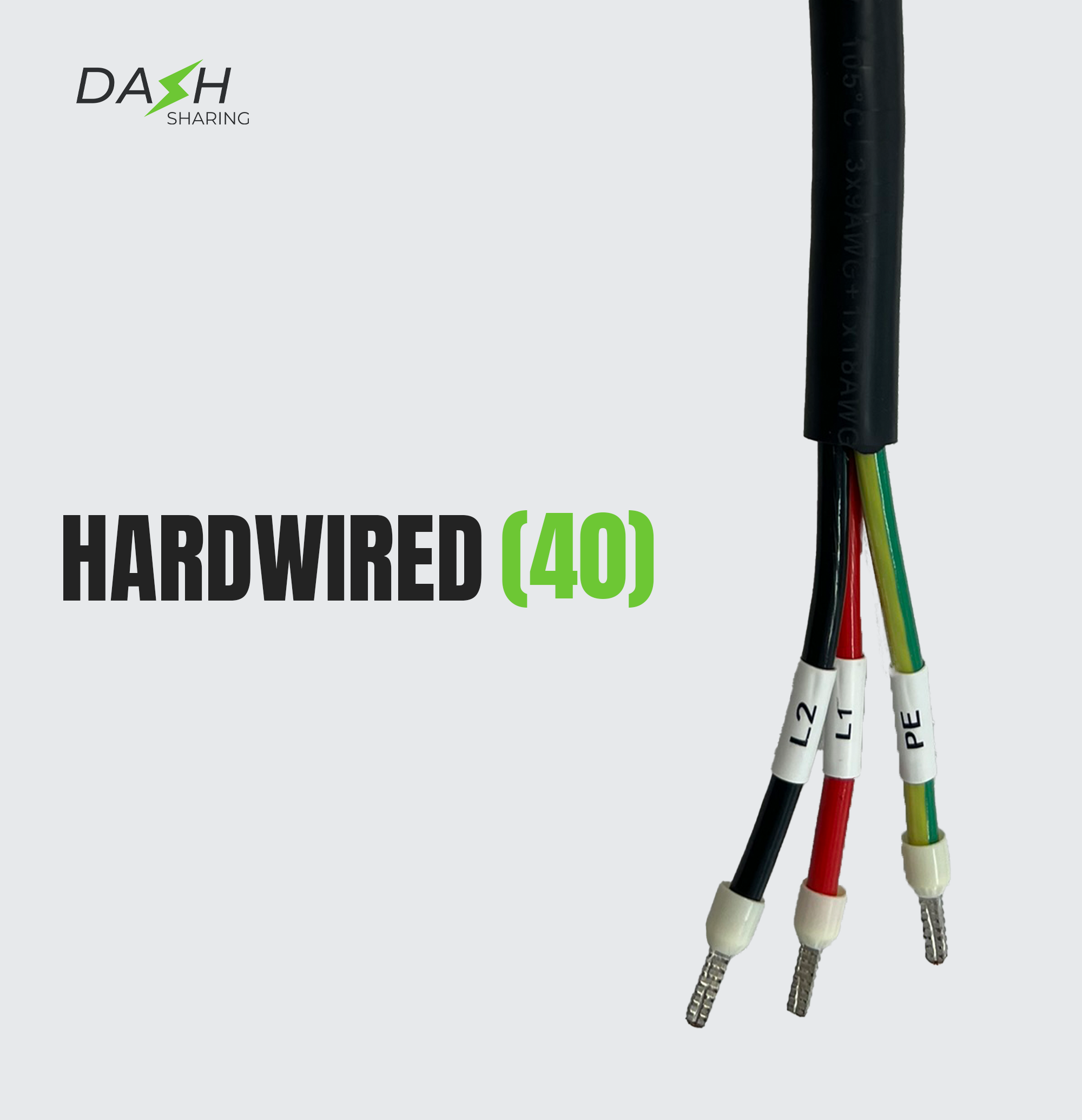

  • Hardwired (40A)

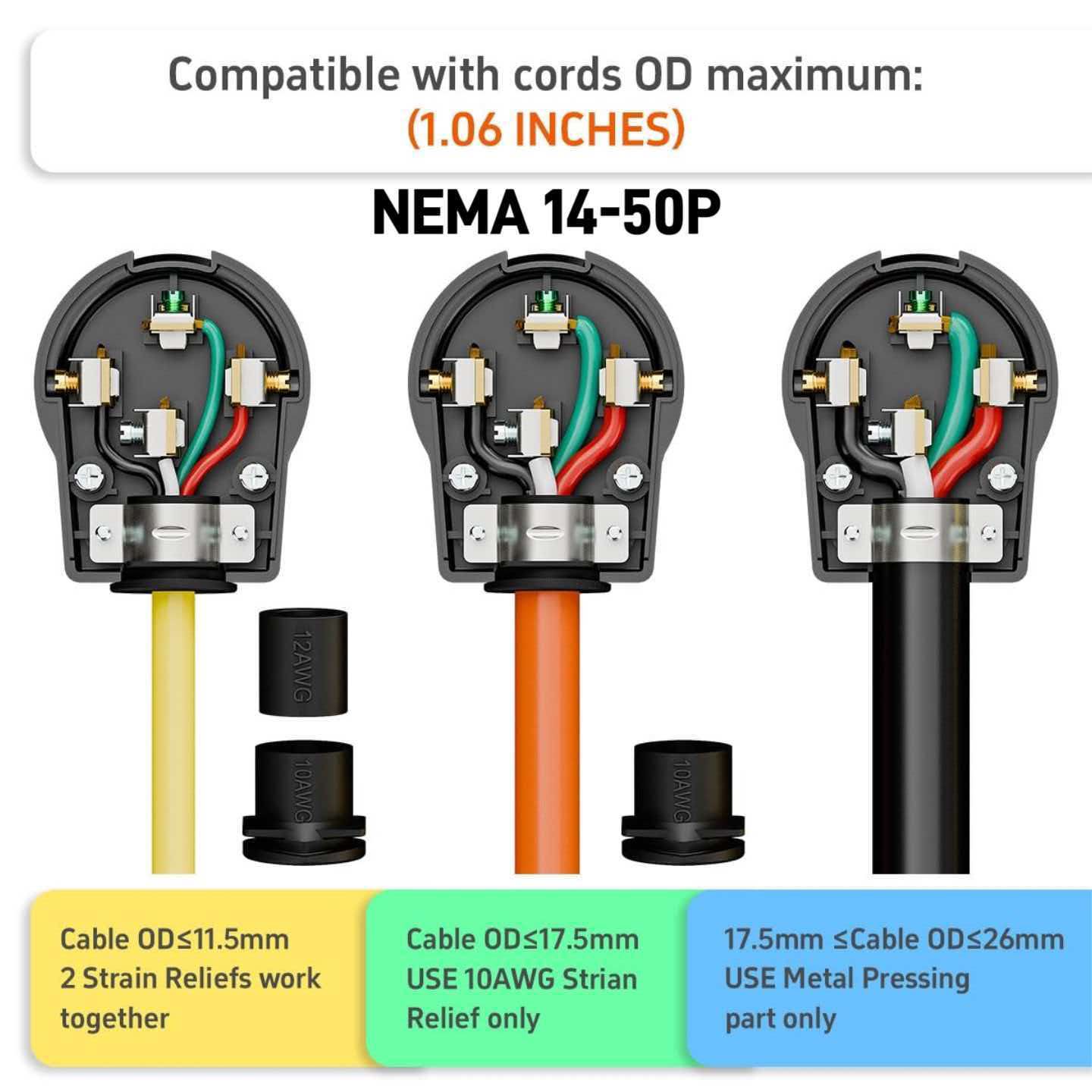

  • NEMA 14-50 plug (40A)
  • J1772 (Universal)
  • NACS (Tesla Style)

Product Specification

General Features

General Features

  • Charging mode: Level 2
  • Vehicle connection: SAE J1772 or NACS1 plug with 18' cable
  • AC power output: 7.4kW/32A, 9.6kW/40A, 11.5kW/48A
  • Mounting options: Wall and post mounting

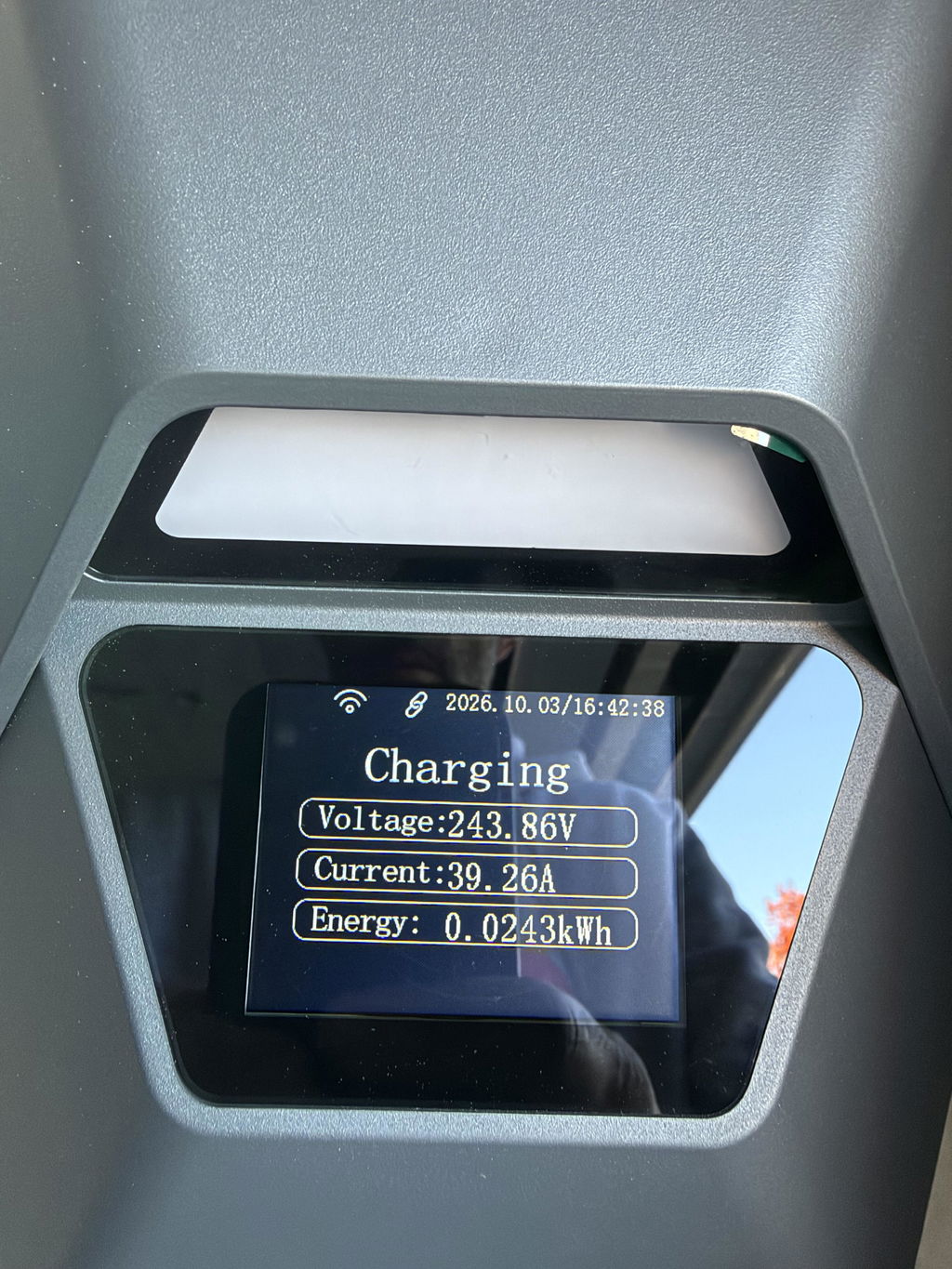

  • Digital Screen: 2.8" LCD Screen
  • Charging status LED: Yes
  • Load management: via OCPP platform

Communication, Certificates and Standards

Communication

  • Interfaces: Ethernet, WiFi, Bluetooth
  • User authentication: App
  • Back-end protocol: OCPP 1.6J
  • Software upgrade: Over the air (OTA)

Certificates and Standards

  • ETL listed: UL2594, CSA C22.2#280

General Design and Electrical Details

General Design

  • Environmental rating: NEMA 3R
  • Dimensions (HxWxD): 325.3 x 230.6 x 143 mm
  • Weight: 6.6 kg
  • Ambient conditions: Operating temperature -30°C to +50°C, 5% to 95% RH
  • Shell material: PC + Glass
  • Colours: Grey, PC

Electrical Details

  • Power supply voltage: Single phase, 208V/240V AC, 60 Hz
  • Rated current settings: 32A, 40A, 48A
  • Power wiring: 3 Wire, L1, L2 plus ground
  • Earth leakage protection & ground fault protection: Yes
  • Overvoltage/undervoltage protection: Yes
  • Over current protection: Yes
  • Operating altitude: ≤ 2000m
